Tutorial 7: Sustained Oscillation — The Pendulum

Two-stock cross-coupled structures and why integration method matters

Author

Kenneth Moore

Introduction: What Is Sustained Oscillation?

Many real systems cycle up and down — a pendulum swings back and forth, employment levels in an industry rise and fall on multi-year cycles, blood sugar oscillates around a set point. This behaviour is called sustained oscillation.

Sustained oscillation is a fundamentally different mode of behaviour from the three we have seen so far:

Behaviour Producing structure
Exponential growth or decay One stock, one reinforcing loop
Goal-seeking / asymptotic approach One stock, one balancing loop
S-shaped growth One stock, competing reinforcing and balancing loops
Sustained oscillation Two stocks, cross-coupled flows

The last row reveals a key result: a single-stock system cannot oscillate sustainably. A single stock always converges to equilibrium or diverges. Two stocks, linked in the right way, can sustain oscillation.

The Generic Structure for Sustained Oscillation

The structural requirement is straightforward: each stock’s rate of change must be driven by the other stock, not by itself. This cross-coupling is what creates oscillation.

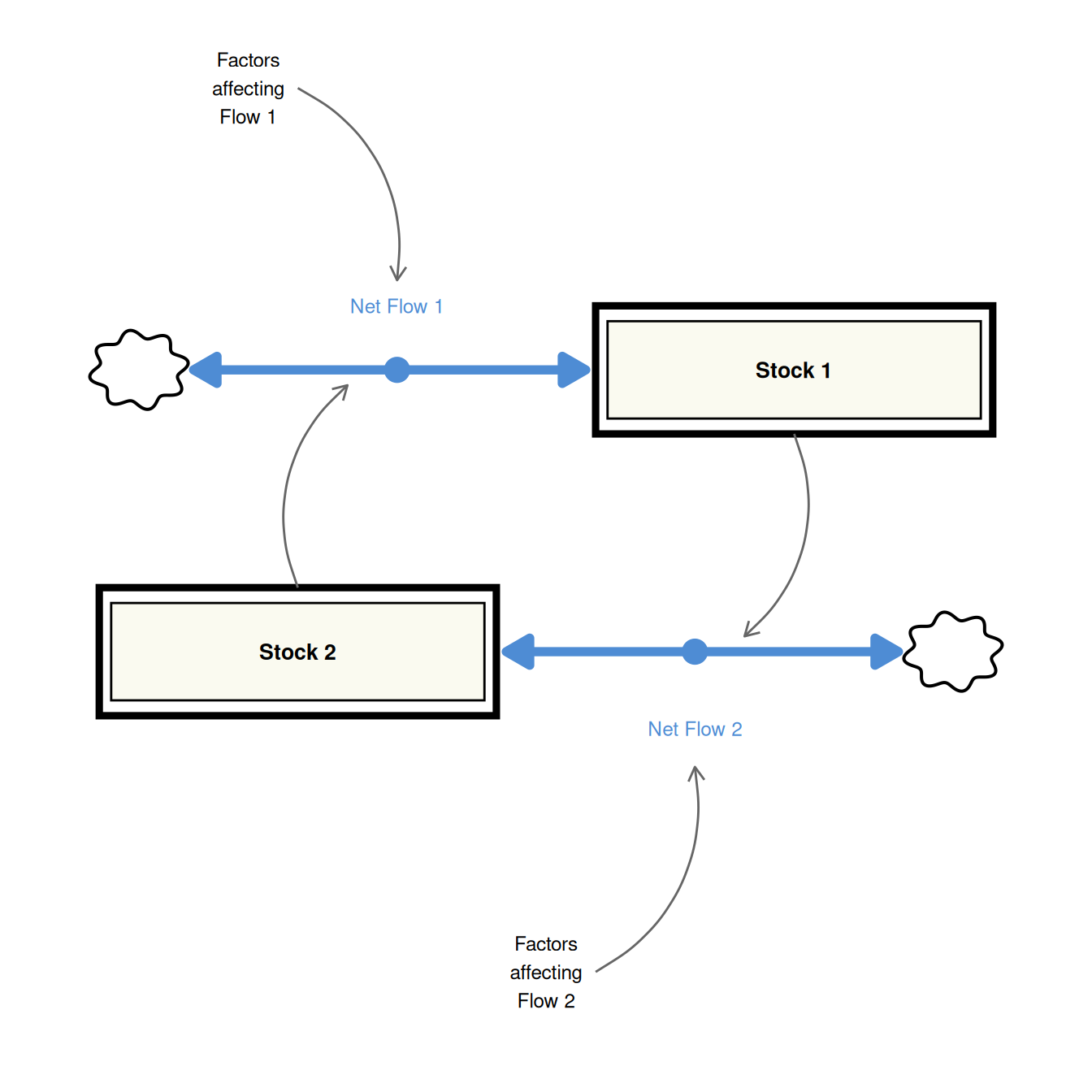

Figure 1: Generic Structure for Sustained Oscillation (adapted from Figure 6, D-4426-3). Net Flow 1 is driven by Stock 2; Net Flow 2 is driven by Stock 1. This cross-coupling is the structural origin of oscillation.

Compare this to the single-stock structures from earlier tutorials. There, the information link looped straight back to the same stock’s own flow. Here, each link crosses over to influence the other stock’s flow. This mutual dependency keeps both stocks changing, which keeps both flows active, sustaining the cycle indefinitely.

The Pendulum Model

The pendulum is the simplest physical instantiation of the generic oscillating structure. A bob is displaced from its resting position and released; gravity pulls it back, overshoots, and the cycle continues.

The two stocks are:

Stock Description Unit
Position Horizontal displacement from equilibrium metres
Velocity Rate of change of position m/s

The cross-coupling:

  • Velocity drives Position change. The position changes at a rate equal to the current velocity — this is just the definition of velocity.
  • Position drives Velocity change. How far the pendulum is displaced (the gap from equilibrium) determines the restoring acceleration due to gravity.

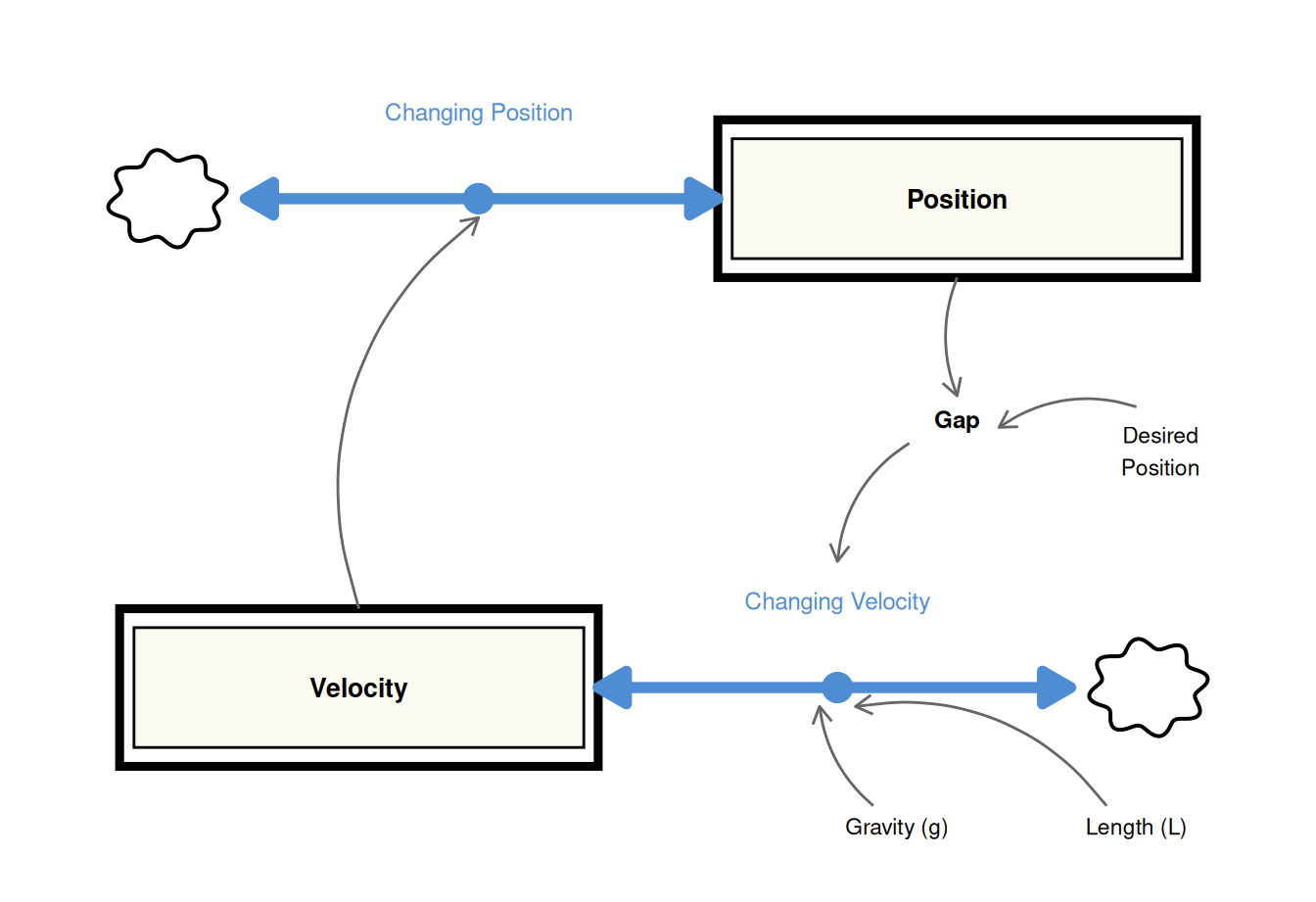

Figure 2: Stock-and-flow structure of the pendulum. Velocity drives the Changing Position flow (cross arc, upper left). Position and Desired Position together determine Gap; Gap, Gravity, and Length together drive Changing Velocity (cross arc, lower right).

Model Equations

The equations are:

\[\frac{d(\text{Position})}{dt} = \text{Velocity}\]

\[\frac{d(\text{Velocity})}{dt} = \frac{g}{L} \times \text{Gap}\]

\[\text{Gap} = \text{Desired Position} - \text{Position}\]

where \(g = 9.8 \text{ m/s}^2\) is gravitational acceleration and \(L\) is the pendulum length in metres. Desired Position is the equilibrium point (zero horizontal displacement).

Note that when Position > 0 (displaced to the right), Gap is negative, so velocity decreases — the restoring force pulls the bob back. This sign reversal is what keeps the system cycling rather than diverging.

R Implementation

Libraries

library(deSolve)
library(tidyverse)

Why Integration Method Matters

This model is a critical illustration of why Euler integration fails for oscillating systems. Euler approximates each step using only the derivative at the start of the step. In an oscillating system, the derivative changes rapidly within each step, and Euler systematically overestimates the amplitude — producing oscillations that grow rather than sustain.

RK4 evaluates the derivative at four points within each step, tracking the curvature accurately and maintaining constant amplitude.

model <- function(time, stocks, params) {
  with(as.list(c(stocks, params)), {
    c_gap               <- p_desired_position - s_position
    f_changing_position <- s_velocity
    f_changing_velocity <- (p_gravity / p_length_of_pendulum) * c_gap
    ds_position_dt      <- f_changing_position
    ds_velocity_dt      <- f_changing_velocity
    return(list(
      c(ds_position_dt, ds_velocity_dt),
      gap          = c_gap,
      acceleration = f_changing_velocity
    ))
  })
}

stocks <- c(s_position = 0.15, s_velocity = 0)
params <- c(p_desired_position = 0, p_gravity = 9.8, p_length_of_pendulum = 1)

comparison_times <- seq(0, 10, 0.25)

sim_euler <- ode(
  times = comparison_times, y = stocks, parms = params,
  func = model, method = "euler"
) |>
  as_tibble() |>
  mutate(time = as.numeric(time), s_position = as.numeric(s_position)) |>
  select(time, s_position) |>
  mutate(method = "Euler (step = 0.25 s)")

sim_rk4 <- ode(
  times = comparison_times, y = stocks, parms = params,
  func = model, method = "rk4"
) |>
  as_tibble() |>
  mutate(time = as.numeric(time), s_position = as.numeric(s_position)) |>
  select(time, s_position) |>
  mutate(method = "RK4 (step = 0.25 s)")

bind_rows(sim_euler, sim_rk4) |>
  ggplot(aes(x = time, y = s_position, colour = method)) +
  geom_line(linewidth = 0.8) +
  scale_colour_manual(
    values = c("Euler (step = 0.25 s)" = "#d45b4e",
               "RK4 (step = 0.25 s)"  = "#4e8cd4")
  ) +
  labs(x = "Time (seconds)", y = "Position (metres)", colour = NULL) +
  theme_minimal(base_size = 12) +
  theme(legend.position = "bottom")

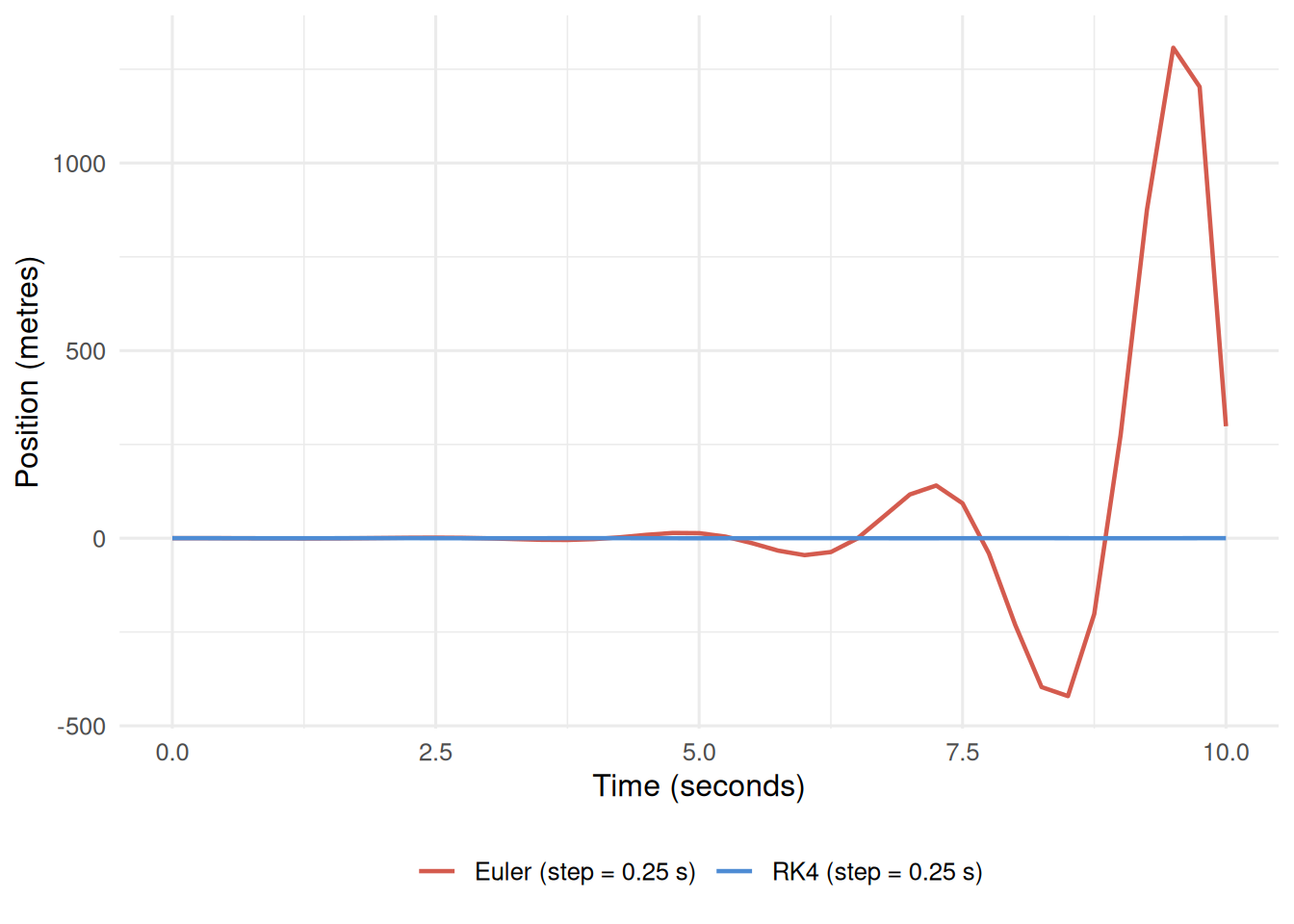

Figure 3: Euler integration produces artificially expanding oscillations — a numerical artefact, not a property of the model. RK4 correctly produces sustained oscillations at constant amplitude. Both runs use the same step size (0.25 s) and the same model.

All further runs use method = "rk4".

Model Function

The model follows the standard deSolve function signature. Variable names use the project’s prefix convention (s_ stocks, p_ parameters, c_ converters, f_ flows).

model <- function(time, stocks, params) {
  with(as.list(c(stocks, params)), {
    c_gap               <- p_desired_position - s_position
    f_changing_position <- s_velocity
    f_changing_velocity <- (p_gravity / p_length_of_pendulum) * c_gap
    ds_position_dt      <- f_changing_position
    ds_velocity_dt      <- f_changing_velocity
    return(list(
      c(ds_position_dt, ds_velocity_dt),
      gap          = c_gap,
      acceleration = f_changing_velocity
    ))
  })
}

stocks <- c(s_position = 0.15, s_velocity = 0)
params <- c(p_desired_position = 0, p_gravity = 9.8, p_length_of_pendulum = 1)

The pendulum is released from a displacement of 0.15 metres with zero initial velocity. Desired Position is zero (the equilibrium resting point). Pendulum length is 1 metre.

Solving and Visualising

sim_time <- seq(0, 10, 0.01)

sim_data <- ode(
  times = sim_time,
  y     = stocks,
  parms = params,
  func  = model,
  method = "rk4"
) |>
  as_tibble() |>
  mutate(across(everything(), as.numeric))
sim_data |>
  select(time, s_position, s_velocity) |>
  pivot_longer(-time, names_to = "variable", values_to = "value") |>
  mutate(
    variable = recode(variable,
                      "s_position" = "Position (metres)",
                      "s_velocity" = "Velocity (m/s)")
  ) |>
  ggplot(aes(x = time, y = value)) +
  geom_line(colour = "#4e8cd4", linewidth = 0.8) +
  facet_wrap(~variable, ncol = 1, scales = "free_y") +
  labs(x = "Time (seconds)", y = NULL) +
  theme_minimal(base_size = 12)

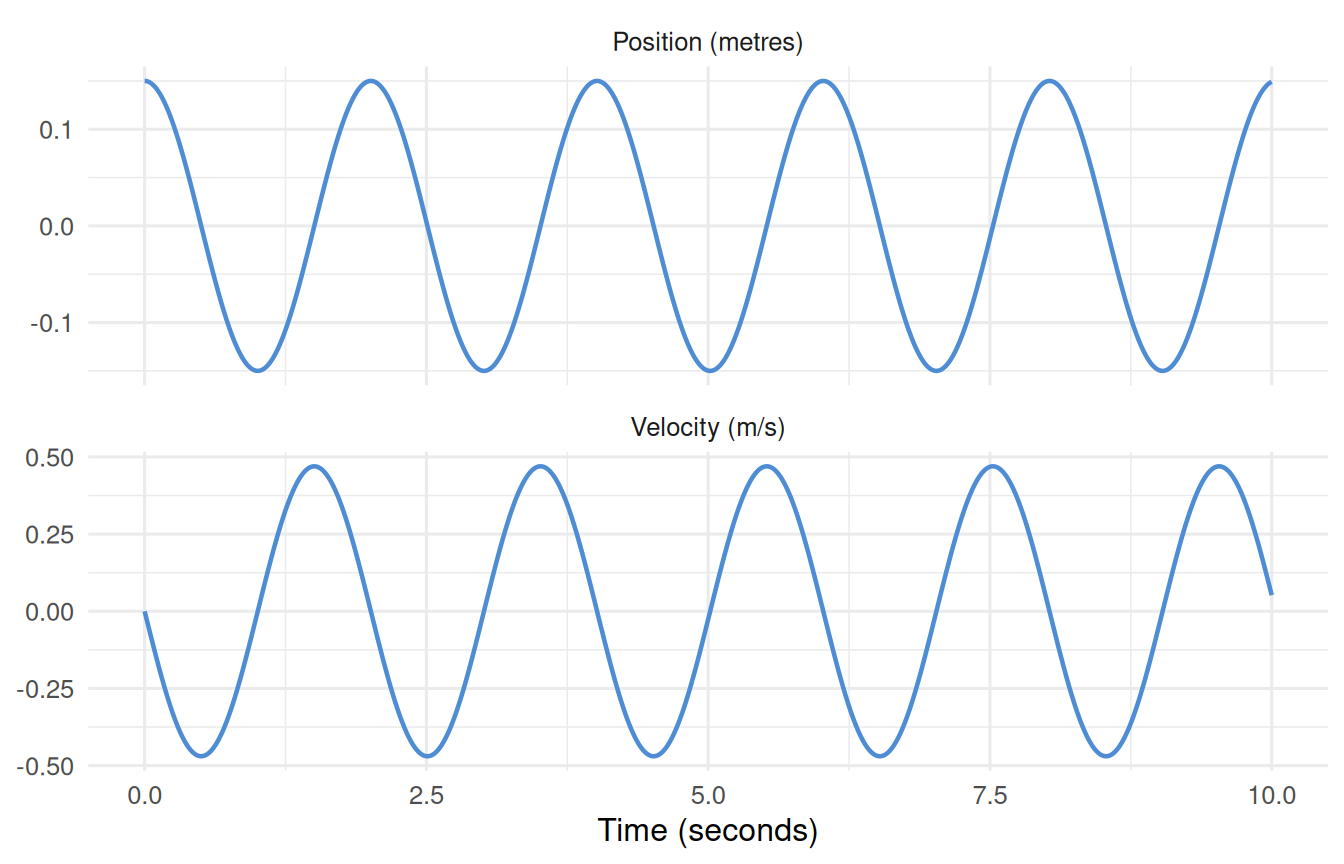

Figure 4: Position and velocity of the pendulum over 10 seconds. Both oscillate at constant amplitude, 90 degrees out of phase — when position is at its maximum, velocity is zero (the momentary pause before reversal), and when velocity is at its peak, position is at zero (the bob passing through equilibrium at full speed).

The 90-degree phase offset between position and velocity is a signature of sustained oscillation and is visible in the phase portrait — a plot of velocity against position.

sim_data |>
  ggplot(aes(x = s_position, y = s_velocity)) +
  geom_path(colour = "#4e8cd4", linewidth = 0.7) +
  geom_point(data = sim_data[1, ], aes(x = s_position, y = s_velocity),
             colour = "#d45b4e", size = 2.5) +
  annotate("text", x = 0.155, y = 0.03, label = "start",
           size = 3, colour = "#d45b4e", hjust = 0) +
  labs(x = "Position (metres)", y = "Velocity (m/s)") +
  theme_minimal(base_size = 12)

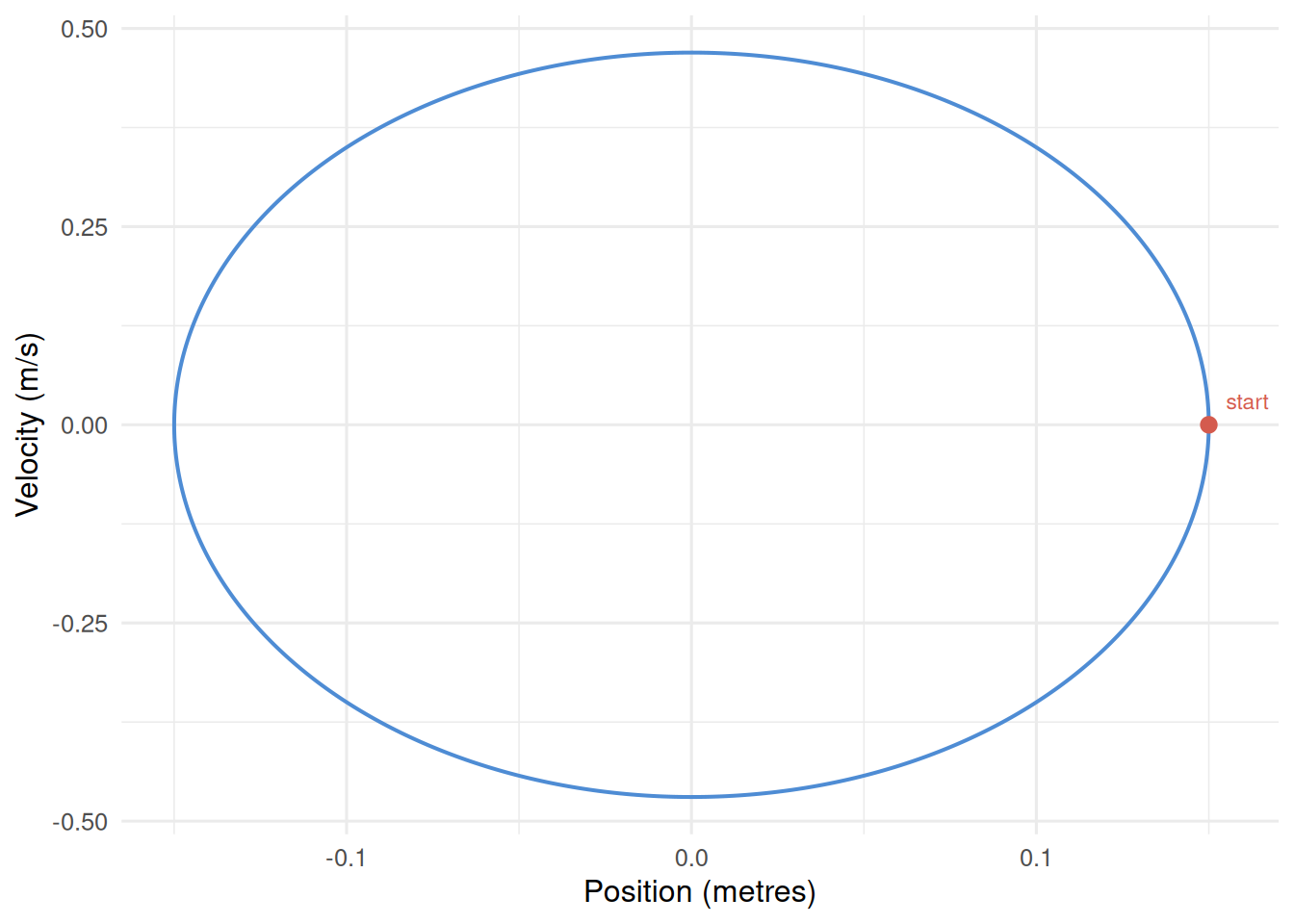

Figure 5: Phase portrait of the pendulum. For a frictionless (undamped) pendulum, the trajectory is a closed ellipse — the system returns to exactly the same state each cycle. The direction of travel is clockwise: from the starting point (position = 0.15, velocity = 0) the bob accelerates leftward (velocity becomes negative), reaches zero position at maximum negative velocity, decelerates, and returns.

Summary

  • Sustained oscillation requires two stocks with cross-coupled flows — each flow driven by the opposite stock.
  • This is the generic structure (Figure #6, D-4426-3). The pendulum is one physical instance of it; employment-inventory cycles are another.
  • Euler integration fails for oscillating systems: it produces artificial amplitude growth at any step size. RK4 is required.
  • The pendulum equations are:
    • \(d(\text{Position})/dt = \text{Velocity}\)
    • \(d(\text{Velocity})/dt = (g/L) \times \text{Gap}\)
